Home > Products > Antenna products > World Space Antenna

Product Introduction

Model：

WSA-A01

Product Introduction：

Product Description ： 1、Fold World Space Antenna，support GSM/GPRS/3G band； 2、Mounting Method：Magnet/Wall hangings； 3、This specification covers circular polarized antenna unit for receiving satellite signal for Worldspace rad

Product description

Product Description：
1、Fold World Space Antenna，support GSM/GPRS/3G band；
2、Mounting Method：Magnet/Wall hangings；
3、This specification covers circular polarized antenna unit for receiving satellite signal for Worldspace radio system；

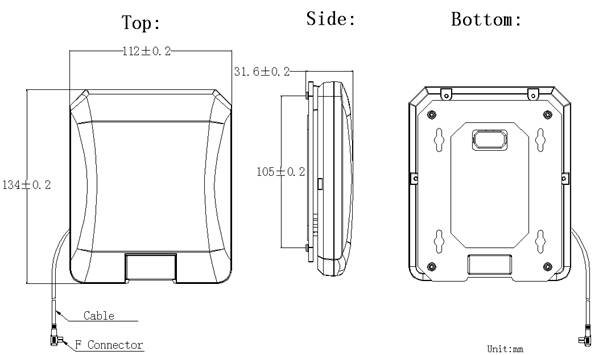

Product Dimension：

Product Introduction：

Antenna	Center Frequency	1472±20 MHz
	Bandwidth	40MHz min
	Peak Gain	6dBic
	Polarization	RHCP/LHCP
LNA	Center Frequency	1472±20 MHz
	Gain	30±2dB
	Noise Figure	1.5dB max
	Image Rejection (Measured at 1262MHz)	40dB
	Supply Voltage RHCP	DC 3.0±0.2 V
	Supply Voltage LHCP	DC 2.3±0.2 V
	Current	16±2 mA
	Impedance	50Ω
	V.S.W.R	2.0dB max
Mechanical	Cable	RG174
	Connector	GT5/SMA/FAKRA or others
	Radome Material	ABS
	Ingress Protection	IP67
	Mounting Method	Magnet/Wall hangings
Environmental	Operating Temperature	-20℃ to +80℃
	Relative Humidity	Up to 95℃
	Vibration	10 to 55Hz with 1.5mm amplitude 2hours
	Environmentally Friendly	ROHS Compliant
